5. Secondary Development Program Deployment

Two deployment methods are generally recommended for secondary development programs: onboard HDU deployment and third-party industrial PC deployment. Onboard HDU deployment is simpler in terms of hardware and is suitable when the secondary development program does not consume many resources. If more resources are required, some existing programs on the HDU need to be stopped to free CPU, GPU, and other resources. Third-party industrial PC deployment requires additional data transmission methods, such as HTTP, but it allows the original onboard software functions to be retained while also providing relatively sufficient computing resources.

5.1 Onboard HDU Deployment

The recommended deployment directory is /agibot/data/home/agi/Desktop. The onboard disk cleanup module clears space periodically, but this directory is on the whitelist and will not be cleaned.

bash

mkdir -p /agibot/data/home/agi/Desktop

If you encounter permission issues, you can create the directory with the following commands:

bash

sudo mkdir -p /agibot/data/home/agi/Desktop
sudo chown -R agi:agi /agibot/data/home/agi

5.1.1 Python Virtual Environment

If you use Python for secondary development, you only need to create a virtual environment. Tools such as conda or venv can be used. venv is built into the system. For Conda installation, refer to the official Miniconda installation guide.

5.1.2 Docker Deployment

If you use C++ or another compiled language, or if you need to install or modify certain system dependencies, you can consider deploying with Docker.

For Docker installation, refer to https://docs.docker.com/engine/install/ubuntu/#install-from-a-package. Do not install Docker with apt.

5.1.2.1 Change the Default Docker Data Path

The default Docker data path, /var/lib/docker, is on a relatively small partition. You need to change the default data storage path to a whitelisted directory.

Move the default storage path

bash

# Stop the Docker service
sudo systemctl stop docker

# Move the default storage path (create the target path /agibot/data/home/agi/Desktop first)
sudo mv /var/lib/docker /agibot/data/home/agi/Desktop

Modify the configuration file

bash

# Edit the Docker configuration
sudo vim /etc/docker/daemon.json

Add the following content to the configuration file:

json

{
  "data-root": "/agibot/data/home/agi/Desktop/docker"
}

Restart Docker:
bash
```
sudo systemctl start docker
```
Docker configuration is now complete.

5.1.2.2 ROS2 Communication Between the Container and the Host

With the default configuration, ROS2 communication between the container and the onboard system does not work properly. Additional configuration is required.

When creating the container, share IPC and network communication with the host by adding the following options:
bash
```
--ipc=host --net=host
```
Use the same agi user inside the container as on the ORIN, with both uid and gid set to 1001:
bash
```
groupadd -g 1001 agi && useradd -u 1001 -g 1001 -m -s /bin/bash agi
```
Use the same DDS configuration file inside and outside the container. Copy /agibot/software/v0/entry/cfg/ros_dds_configuration.xml from the HDU into the container, and run the following commands before executing a ROS2 program or using ros2 commands inside the container. Replace /path/to with the actual path:
bash
```
export ROS_DOMAIN_ID=232
export FASTRTPS_DEFAULT_PROFILES_FILE=/path/to/ros_dds_configuration.xml
```
You should now be able to receive ROS2 topics published by the HDU inside the container:
bash
```
ros2 topic list
```

5.2 Wired Connection to the Robot Device

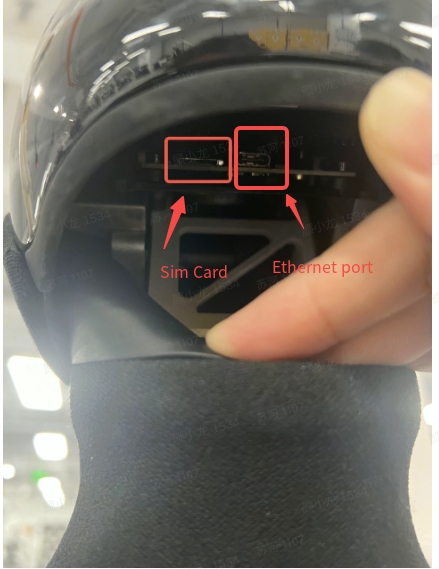

There is a Type-C interface on the robot head connected to the HDU device for communication with the HDU. Users can connect the Type-C interface on the robot head to another device to communicate with the HDU.
